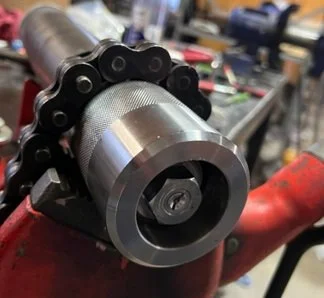

Goodnight Oil Tools Ballistic Release Tool Overview:


The Ballistic Release Tool (BRT) is a critical safety device designed for wireline operations in the oil and gas industry. Engineered to provide a reliable emergency release mechanism, the BRT ensures operational safety and efficiency in high-risk environments such as well interventions and completions.

Key Features:

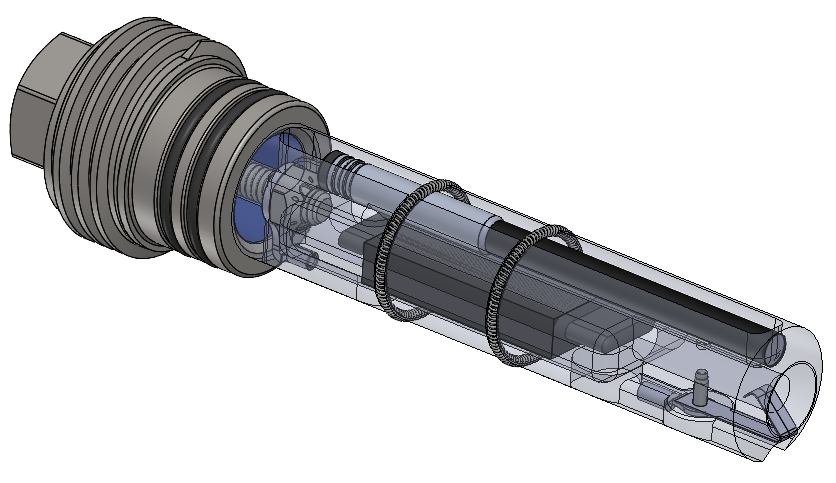

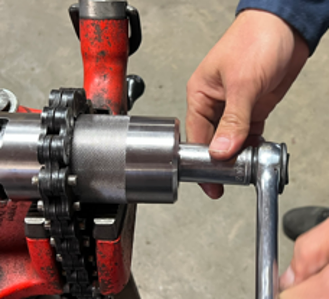

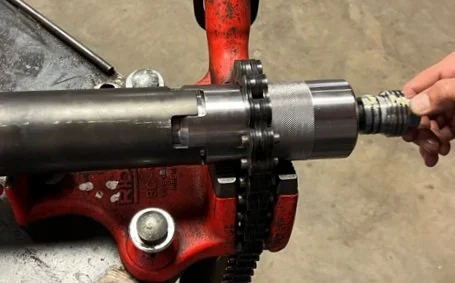

  • Cartridge-Based Design: The BRT incorporates a removable cartridge that contains the electrical switch and energetic required for actuation. This innovative design allows for quick and easy replacement using a 15/16 socket, significantly improving and simplifying field operations.

  • Service Life: Rated for 200 runs before redress is required.

  • Emergency Release Capability: Provides a rapid and controlled release of downhole tools using  low order energetics in case of operational failure or well conditions that prevent normal retrieval.

  • Robust Construction: Manufactured from high-grade, corrosion-resistant materials to withstand harsh downhole environments, including high pressure and temperature conditions, Inconel options available.

  • Compact Design: Optimized for minimal toolstring length addition the tool is only 16 inches long, allowing for seamless integration with existing wireline equipment.

  • Enhanced Reliability: The cartridge system improves reliability by allowing for quick changes of components that are susceptible to heat cycling and wear, reducing operational risks and increasing uptime.

  • Compatibility: Designed to interface with a wide range of wireline tools and conveyance systems, enhancing operational flexibility.

  • Safety Enhancements: Built-in safeguards to prevent accidental activation and ensure operational integrity under extreme conditions.

  • Pressure Rating: Up to 20,000 psi

  • Temperature Rating: Up to 400°F

Goodnight Oil Tools Swivel Tool Overview:


Wireline Swivel Overview:

Goodnight Oil Tools Swivel, a robust solution designed to protect coated wireline from torque-induced damage during operations. This tool is engineered for high performance and longevity in demanding environments.

Key Features:

  • Exceptional Durability: Designed for a 200-run service life before requiring redress, ensuring long-term reliability.

  • High-Pressure, High-Temperature Performance: Rated to 400°F and 20,000 psi, making it suitable for extreme downhole conditions.

  • Rotating Seals: Capable of withstanding 20,000 psi, ensuring leak-free operation even under high loads.

  • High Tensile Strength: With a tensile rating of 36,000 lbs, the tool can handle significant operational stresses.

  • Compact Design: Measuring 16.2 inches in length, allowing for easy integration into existing toolstrings.

  • Field-Friendly Maintenance: Features an easily replaceable rotating electrical connection, simplifying on-site servicing and minimizing downtime.
